21.5 inch TFT-LCD panel

Dec. 28, 2022 Share:

Here is a cost-effective 21.5-inch TFT-LCD panel, assembled with T215HVN01.1 open cell from AUO. It uses 19 series 4 parallel LED light bar, totally 76 pcs LEDs, which enables typical brightness of 250cd/m2 with uniformity up to 74% typically. The LED life times achieves minimum 3000 hours at room temperature at 25oC, 65%RH. It covers an operating temperature range of 0~50oC, and a storage temperature range of -20~60oC.

Model No.	LB215N05-250	OC Model	T215HVN01.1	Size	21.5”
Brightness	250 cd/m²	Uniformity	74%	Resolution	1920x1080
Outline Dimension	495.6x292.2x10.35mm	Active Area	476.64x268.11	Viewing Area	479.84x271.3
Interface	LVDS	Contrast	1000:1	Viewing Angels	89/89/89/89
Operating Temperature	0~50^oC	Storage Temperature	-20~60^oC	LED Life Time	30000hours

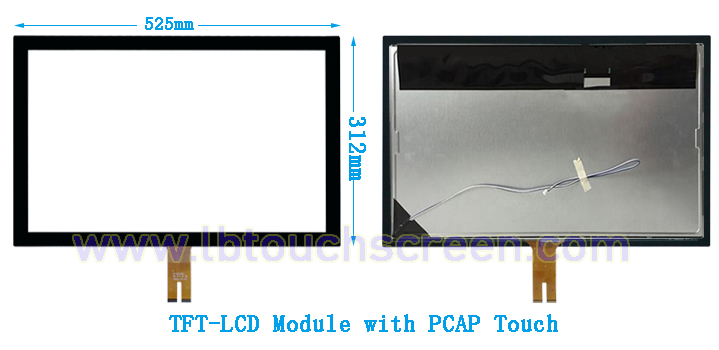

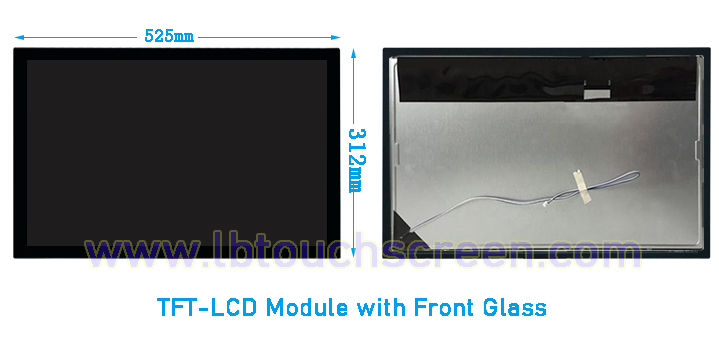

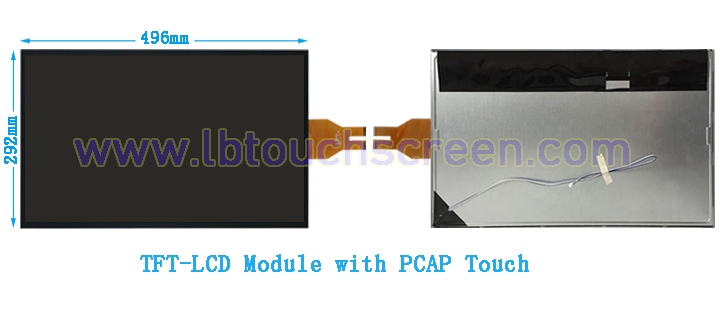

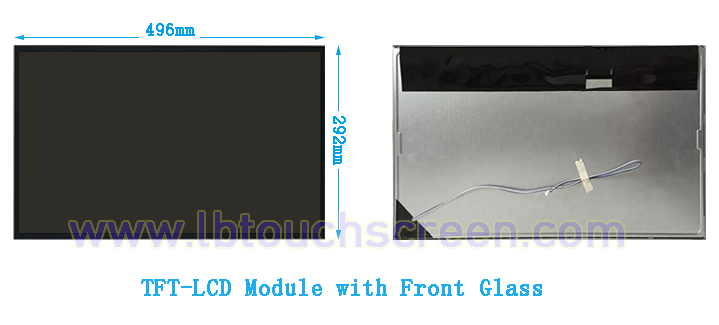

How about assembling a TFT-LCD module on an industrial grade equipment? We recommend GV215FHM-N10 to replace LB215N05-250 due to its wide operating temperature range of -20~70oC and recommend P215HAN02.0 for using in the strong light or direct sunlight due to its high brightness. Below are the cover glass and touch screen overlay, which can help you protect your display panel or make your display panel a touch screen.

https://www.youtube.com/watch?v=84_4BMQSy5o

For more details or further discussion, please email us via llily.lin@lbtouchscreen.com.
