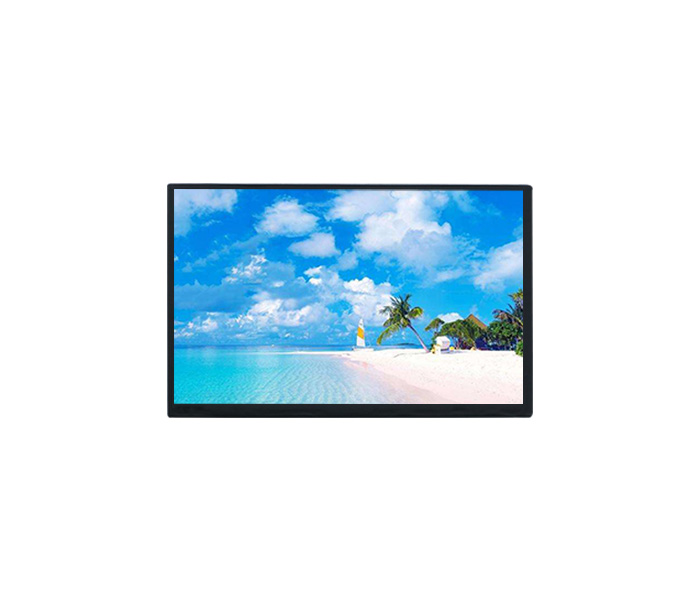

EV101WXM-N10 is 1280x800 pixels TFT-LCD panel with 40-pin LVDS interface. It displays 16.7M colors, wide viewing angles 85/85/85/85. The brightness of module is 400nits. It's recommended for medical applications and industrial devices. EV101WUM-N20 is the updated version of EV101WXM-N10 with higher resolution 1920x1080 and higher brightness 600nits.
10.1-inch 1280x800 TFT-LCD Panel and 1920x1200 for Option

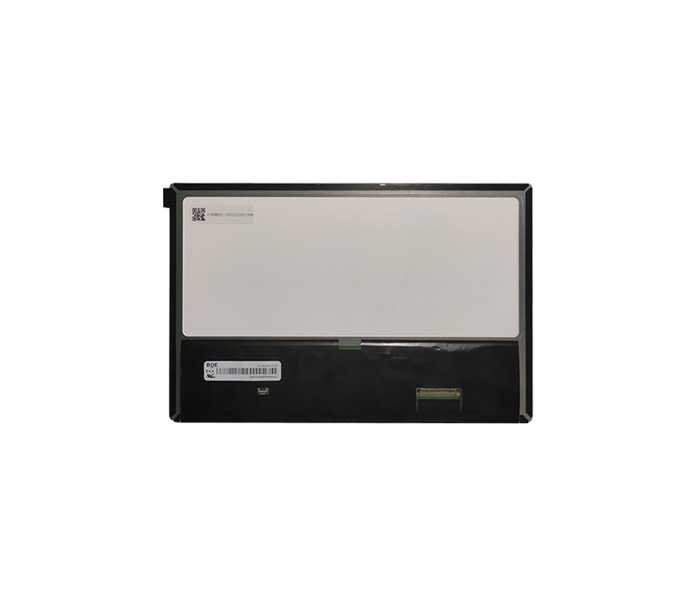

EV101WXM-N10 is a color active matrix TFT LCD module using amorphous silicon TFT’s (Thin Film Transistors) as an active switching devices. This module has a 10. 1 inch diagonally measured active area with WXGA resolutions (1280 horizontal by 800 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots, which are arranged in vertical stripe and this module can display 16.7M colors. EV101WUM-N20 is the updated version of EV101WXM-N10. The active area is 10.1 inch with WUXGA resolutions (1920 horizontal by 1200 vertical pixel array). The brightness is 600cd/m2, which is slight higher than 400cd/m2 of EV101WXM-N10.

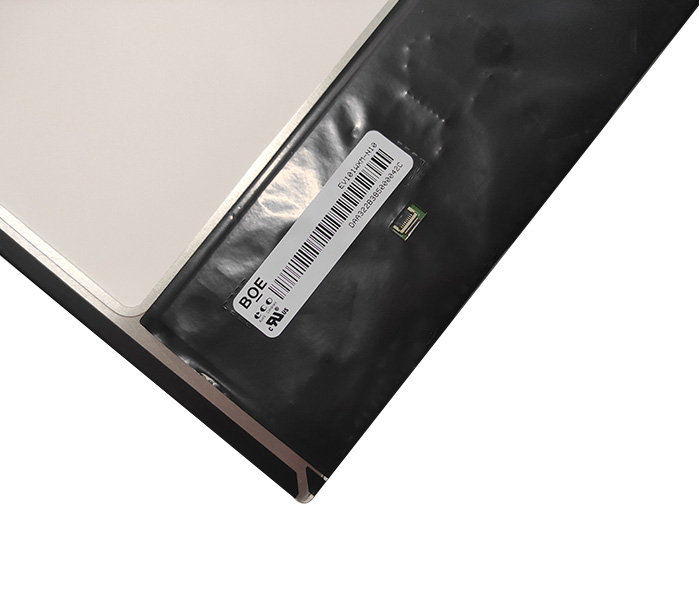

Both EV101WXM-N10 and EV101WUM-N20 are original designed and manufactured by BOE. They are recommended for industrial devices and medical equipment due to their nice performance on color display and color gamut, and due to their wide operating temperature.
General Specification
Model No. | Resolution | Interface | NTSC Ratio |
EV101WXM-N10 | 1280x800pixels | 40-pin LVDS | 50% |
EV101WUM-N20 | 1920x1200pixels | 45-pin LVDS | 72% |
Optical Specifications
Model No. | View Angle (L/R/T/B) | Contrast Ratio | Luminance |
EV101WXM-N10 | 85/85/85/85 degree | 900 | 400cd/m2 |
EV101WUM-N20 | 80/80/80/80 degree | 900 | 600cd/m2 |
Temperature Test
Model No. | Operating Temperature | Storage Temperature |
EV101WXM-N10 | -20oC ～ 70oC | -30oC ～ 70oC |
EV101WUM-N20 | -20oC ～ 70oC | -30oC ～ 80oC |
The standard HD (high definition) TFT-LCD module is 1280x800 pixels with LVDS interface. Nowadays, more and more LCD modules have a projected capacitive (PCAP) touch panel on top of it via air-gap bonding or optical bonding. The new technology PCAP touch supports plug-and-play via USB-A interface connected to computer mainboard, compatible with Windows and Android operating systems. It features in fast reponse within 10ms and multi-touch up to 10 points. Our standard PCAP touch panel is glass-on-glass solution. The top glass is strengthened to be 6H surface hardness and the touch layer is ITO technology touchscreen sensor.
