EV121X0M-N10 is a 1024 x 768 pixels (aspect ratio 4:3) industrial-grade TFT-LCD module from BOE. It is designed for industrial monitors or computers, and medical image. It features 50,000 hours LED life time and the operating temperature range is -20oC ～ 70oC and storage temperature range is -30oC ～ 80oC. The brightness of this module is 500cd/m2.
12.1-inch 1024x768 Industrial TFT-LCD

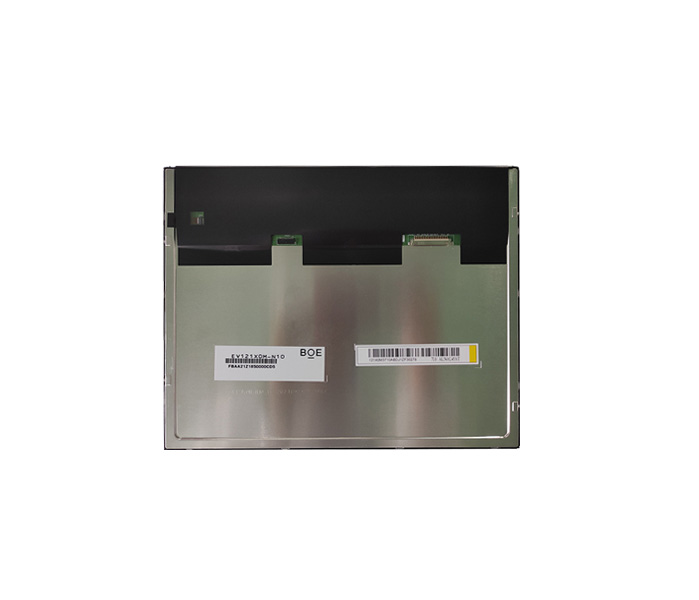

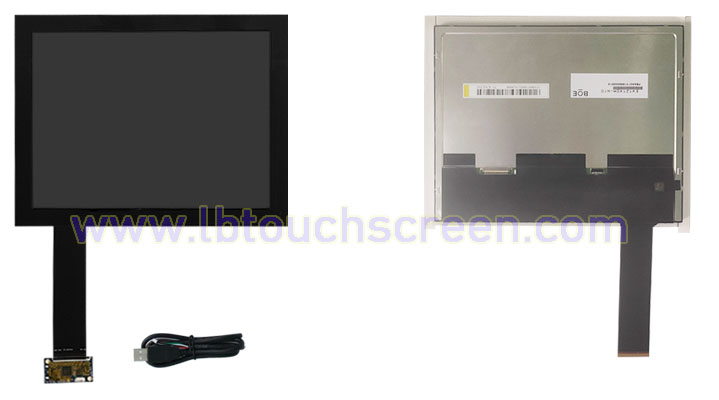

EV121X0M-N10 is a 1024 x 768 pixels (aspect ratio 4:3) industrial-grade TFT-LCD module from BOE. It is designed for industrial monitors or computers, and medical image. It features 50,000 hours LED life time and the operating temperature range is -20oC ～ 70oC and storage temperature range is -30oC ～ 80oC. The brightness of this module is 500cd/m2. It is 20-pin LVDS interface for the LCD panel signal with PM.CON.13076B2001 LCD interface connector and a 10-pin connector of 91208-01001-H01 (ACES) for LED interface.
LCD Module Specifications of EV121X0M-N10
Parameter | Specification | Unit | Remarks |
Active Area | 245.76(H) x 184.32(V) | mm | - |
Number of Pixels | 1024(H) x 768(V) | pixels | - |
Pixel Pitch | 80*240 | mm | - |
Pixel Arrangement | 1P2D | - | - |
Display Mode | Normally Black | - | - |
Display Colors | 16.7M | colors | - |
Contrast Ratio | 1200typ/900min | - | - |
Viewing Angle (CR>10) | 88o/88o/88o/88o | Deg. | U/D/L/R |
Response Time | 25typ/35max | ms | - |
Color Gamut | 72%typ/67%min | - | - |
Brightness | 500 | cd/m2 | Typ. |
Outline Dimension | 260.5(H) x 204(V) x 8.7(D) | mm | - |
The reliability test items and its conditions are shown as below.
No. | Test Items | Conditions |
1 | High Temperature Storage Test | Ta = 80oC, 240 hours |
2 | Low Temperature Storage Test | Ta = -30oC, 240 hours |
3 | High Temperature & High Humidity (Operation Test) | Ta = 60oC, 90%RH, 240 hours |
4 | Low Temperature Operation Test | Ta = -20oC, 240 hours |
5 | High Temperature Operation Test | Ta = 70oC, 240 hours |
6 | Thermal Shock Test | 10-300Hz, 1.5G, 10min/cycle, 100cycles |
