13.3 Inch eDP FHD LCD Module

13.3 Inch eDP FHD LCD Module

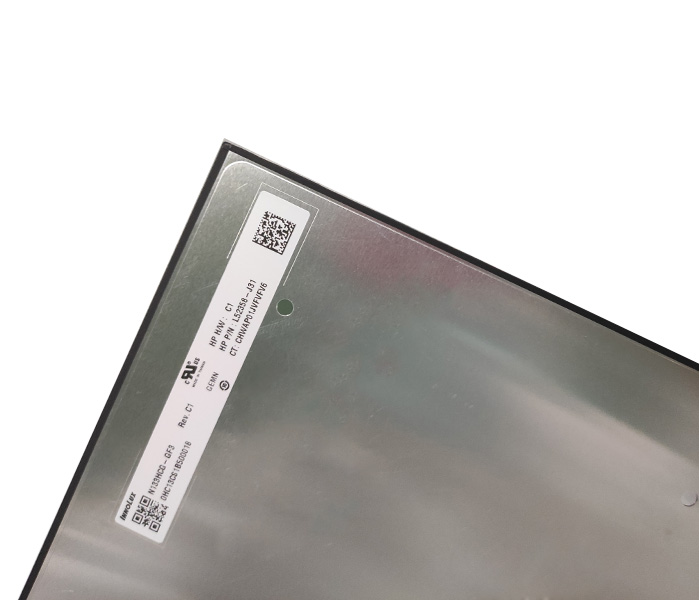

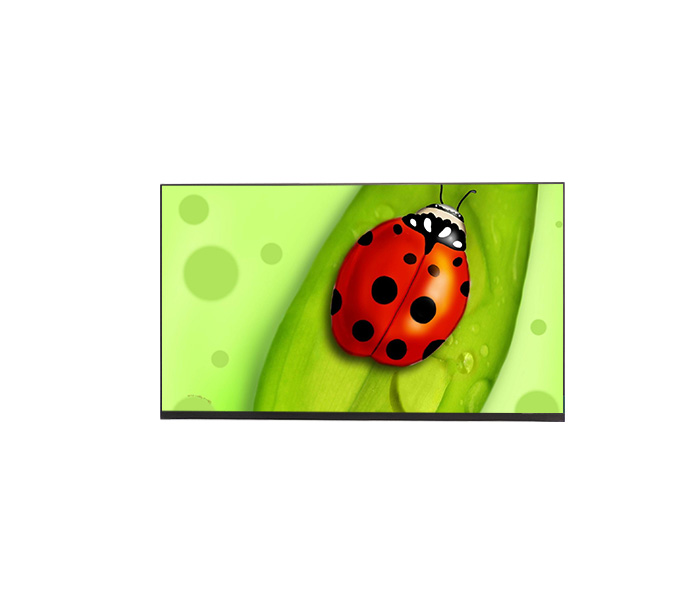

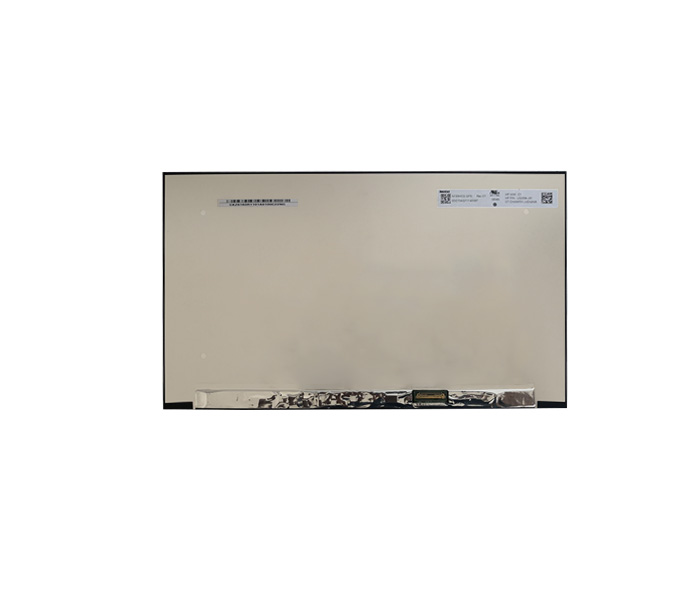

N133HCG-GF3 is a 13.3” (13.3” diagonal) TFT Liquid Crystal Display NB module with LED backlight unit and 30 pins eDP interface. This module supports 1920x1080 FHD mode and can display 16.7M colors. Below are the general specifications. It features the slim bezels 1.5mm each bezel for top, left and right. The PCBA is assembled on the backside to make the bottom bezel 7mm. The brightness is 400cd/m² to make it displays good even behind mirror glass and grey glass. It also features high contrast ratio (1500:1) and high color gamma (72%), making vivid images.

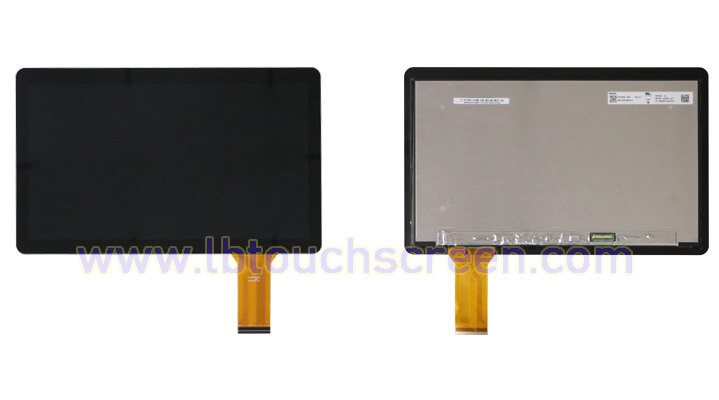

A projected capacitive (PCAP) touch screen overlay (LBCTP133010) is for your option. This touchscreen overlay is glass-on-glass structure. The top layer is chemically strengthened cover glass, optically bonded with the bottom layer of ITO touchscreen sensor glass by optical clear adhesive between. It is powered and driven by a USB controller board, which is compatible with Windows, Android and Linux operating systems. It supports 10-point finger touch, or latex gloved hand touch. The touchscreen overlay is suggested to optically bond with the TFT-LCD module, as the display’s bezels are very narrow, no enough space to laminate the double-sided adhesive for taping bonding. The touchscreen’s cover glass is bigger than the TFT-LCD module outline. The exceeded cover glass is for fixing it to the enclosure of the computer or monitor. Below are the basic specifications and photos for your information.
