NV156FHM-N42 is one of the popular TFT-LCD modules from BOE. This module has a 15.6 inch diagonally measured active area with FHD resolution, 1920(H) x 1080(V) pixels. It can display 262K colors. It is suitable for Notebook PC and some indoor display panels.

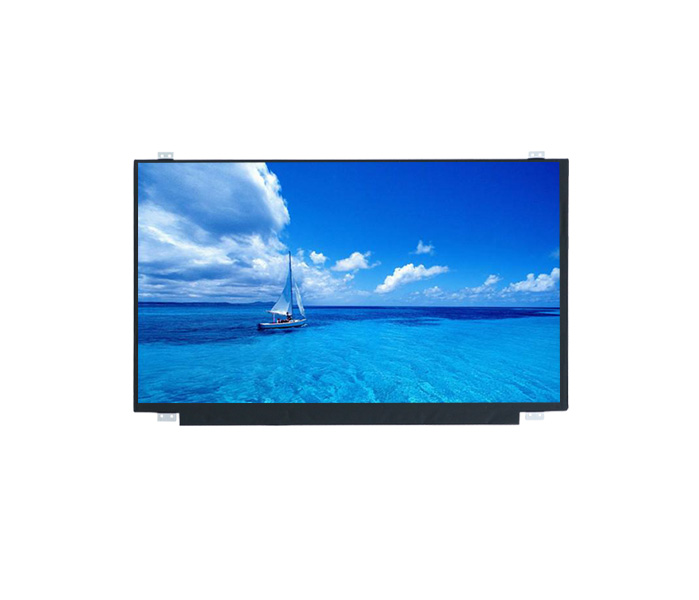

15.6-inch 1920x1080 eDP LCD Module
NV156FHM-N42 is one of the popular TFT-LCD modules from BOE. This module has a 15.6 inch diagonally measured active area with FHD resolution, 1920(H) x 1080(V) pixels. It can display 262K colors. The TFT-LCD panel used for this module is a low reflection and higher color type. Therefore, it is suitable for Notebook PC and some indoor display panels. The LED Driver for backlight driving is built in this module. All input signal are eDP1.2 interface compatible. Below are the main features:
l 2 lane eDP interface with 2.7 Gbps link rates
l Thin and light weight
l 6-bit color depth, display 262K colors
l Single LED lighting bar. (Down side / Horizontal Direction)
l Data enable signal mode
l Green product (ROHS & Halogen free product)
l On board LED driving circuit, on board EDID chip
l Low driving voltage and low power consumption
LCD Module Specifications of NV156FHM-N42
Parameter | Specification | Unit | Remarks |
Active Area | 344.16(H) x 193.59(V) | mm | - |
Number of Pixels | 1920(H) x 1080(V) | pixels | - |
Pixel Pitch | 0.17925(H)*0.17925(V) | mm | - |
Pixel Arrangement | RGB Vertical stripe | - | - |
Display Mode | Normally Black | - | - |
Display Colors | 262K | colors | - |
Surface Treatment | Anti-glare | - | 3H |
Contrast Ratio | 800:1 | - | - |
Viewing Angle (CR>10) | 85o/85o/85o/85o | Deg. | U/D/L/R |
Response Time | 30typ/35max | ms | - |
Color Gamut | 45%typ | - | - |
Brightness | 250 | cd/m2 | Typ. |
Brightness Uniformity | 80% | - | 5 points |
Power Consumption | PD: 0.88 | watt | - |
PBL: 3.29 | - | ||
Ptotal: 4.17 | - | ||
Outline Dimension | 359.5(H) x 223.8(V) x 3.2(D) | mm | - |
Weight | 380(max) | gram | - |
Operating Temperature | 0 ~ 50 | 0C | - |
Storage Temperature | -20 ~ 60 | 0C | - |

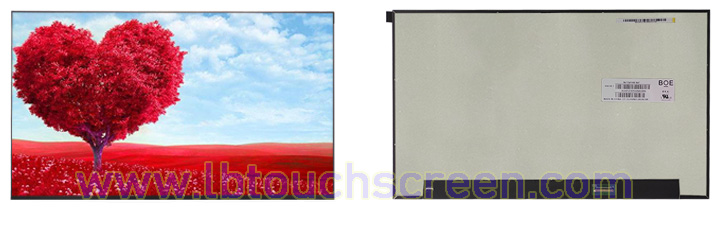

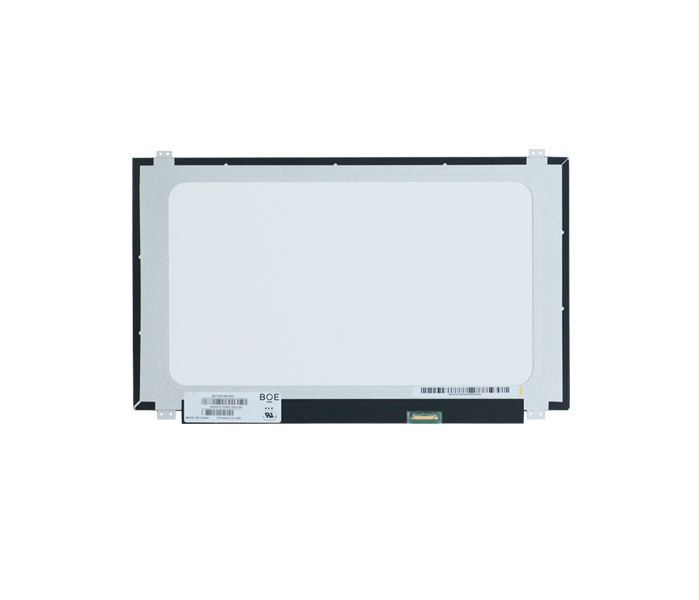

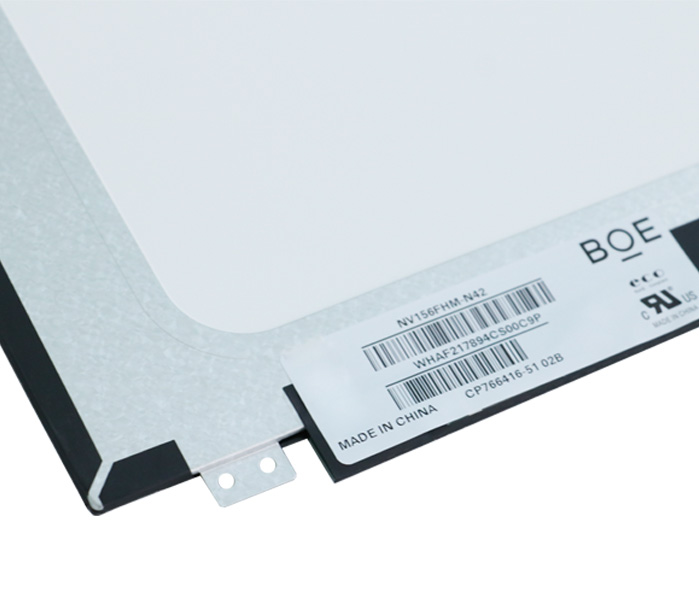

For this module NV156FHM-N42, its PCBA is assembled on the same surface and assembling holes are installed on the top and bottom bezels. Here is another similar module NV156FHM-N4T with very slim bezel, with PCBA assembled on the backside, without assembling holes. Below are the pictures for your reference.
