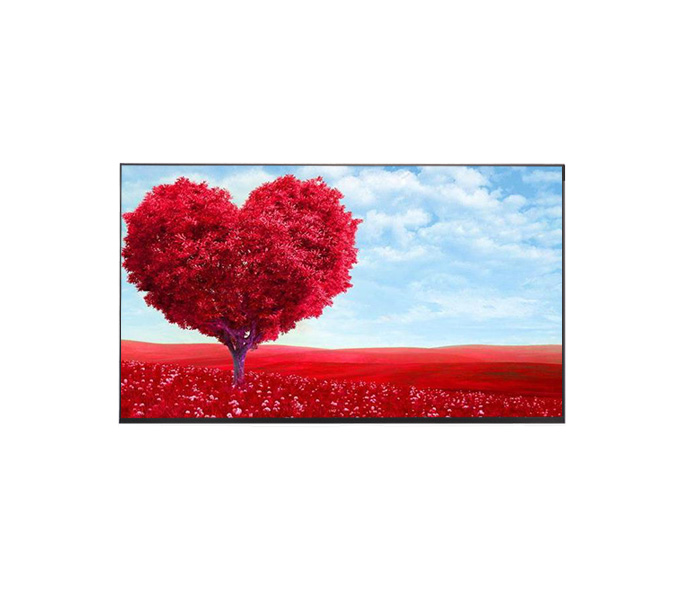

NV156FHM-N4T is a 15.6-inch narrow bezel TFT-LCD module. This module has a 15.6 inch diagonally measured active area with Full HD resolution, 1920(H) x 1080(V) pixels. It can display 262K (6bit) colors and 45% color gamut. For more details, contact us right now.
15.6-inch Narrow Bezel FHD LCD Panel
Features for NV156FHM-N4T
l 2 lane eDP interface with 2.7 Gbps link rates
l Thin and light weight
l 262k(6bit) color depth, color gamut 45%
l Single LED lighting bar. (Bottom side / Horizontal Direction)
l Data enable signal mode
l Green product (ROHS & Halogen free product)
l Low driving voltage and low power consumption
l On board LED driving circuit, on board EDID chip

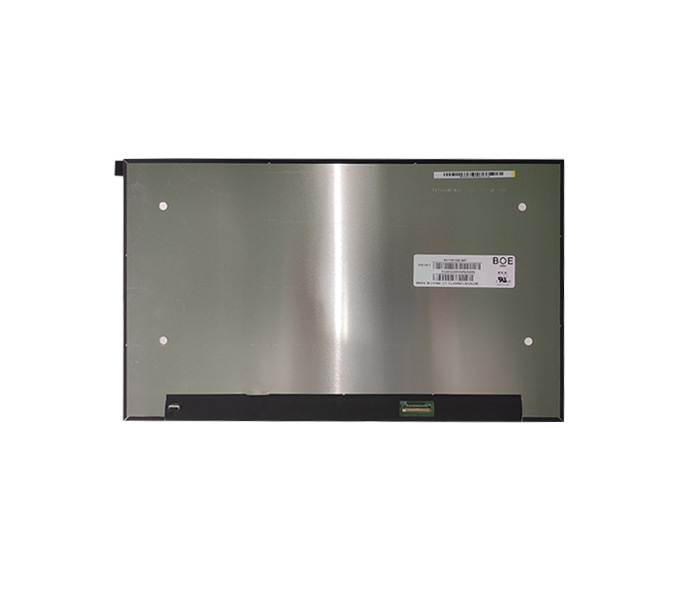

NV156FHM-N4T is a 15.6-inch narrow bezel TFT-LCD module. This module has a 15.6 inch diagonally measured active area with Full HD resolution, 1920(H) x 1080(V) pixels. It can display 262K (6bit) colors and 45% color gamut. It is a low reflection and higher color type. Therefore, it is suitable for narrow bezel Notebook PC, or some slim bezel laptop, or some indoor display panels. The LED Driver for backlight driving is built in this module. All input signal are eDP1.2 interface compatible. Below are the LCD Module Specifications of NV156FHM-N4T.
Parameter | Specification | Unit | Remarks |
Active Area | 344.16(H) x 193.59(V) | mm | - |
Number of Pixels | 1920(H) x 1080(V) | pixels | - |
Pixel Pitch | 0.17925(H)*0.17925(V) | mm | - |
Pixel Arrangement | RGB Vertical stripe | - | - |
Display Mode | Normally Black | - | - |
Display Colors | 262K | colors | - |
Surface Treatment | Anti-glare | - | 3H |
Contrast Ratio | 800:1 | - | - |
Viewing Angle (CR>10) | 85o/85o/85o/85o | Deg. | U/D/L/R |
Response Time | 30typ/35max | ms | - |
Color Gamut | 45%typ | - | - |
Brightness | 250 | cd/m2 | Typ. |
Brightness Uniformity | 80% | - | 5 points |
Power Consumption | PD: 0.88 | watt | - |
PBL: 3.29 | - | ||
Ptotal: 4.17 | - | ||
Outline Dimension | 350.66(H) x 205.24V) x 5.0(D) | mm | with PCB |
Weight | 370(max) | gram | - |
Operating Temperature | 0 ~ 50 | 0C | - |
Storage Temperature | -20 ~ 60 | 0C | - |

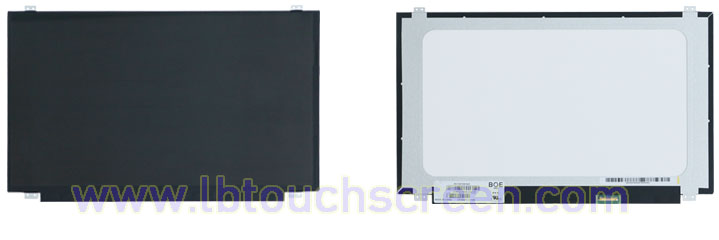

For this module NV156FHM-N4T, when it is working a projected capacitive touch screen overlay, optical bonding technology is recommended. Because the edges are very slim, no enough bezel to laminate the double-sided adhesive tape for air-gap bonding. If you do not need narrow bezel design for your computer for touchscreen control panel. We recommend NV156FHM-N42. Below are photos of NV156FHM-N42 for your information.
