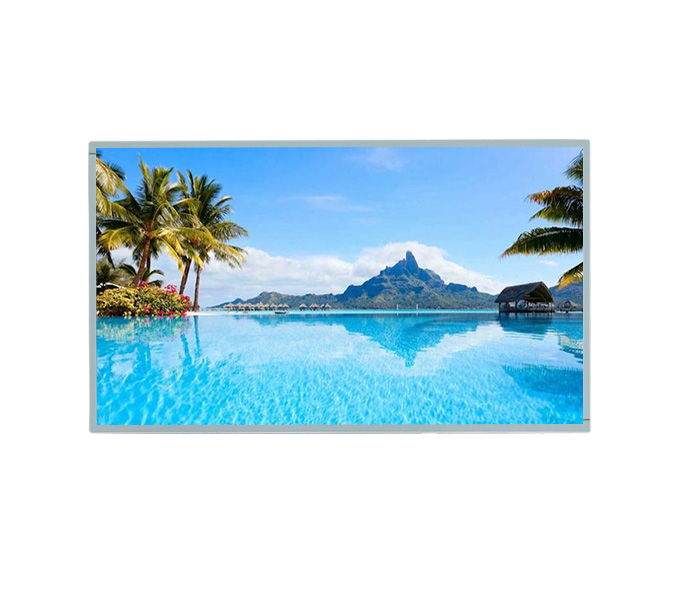

HR215WU1-120 is 21.5 inch FHD (1920 horizontal by 1080 vertical pixel array) display panel from BOE Display Technology. It is original A-grade with orignal carton from BOE. It can display 16.7M colors with wide viewing angles 89/89/89/89. HR215WU1-120 is recommended for desktop type of PC& workstation use, slim-size display for stand-alone monitor, display terminals for control system, monitors for process controller and etc. Another 21.5-inch TFT-LCD module with very similar specifications is LB215N05-250 with OC (T215HVN01.1) from AUO, assembled with backlight designed and manufactured by LB.
21.5-inch 1920x1080 LCD Module

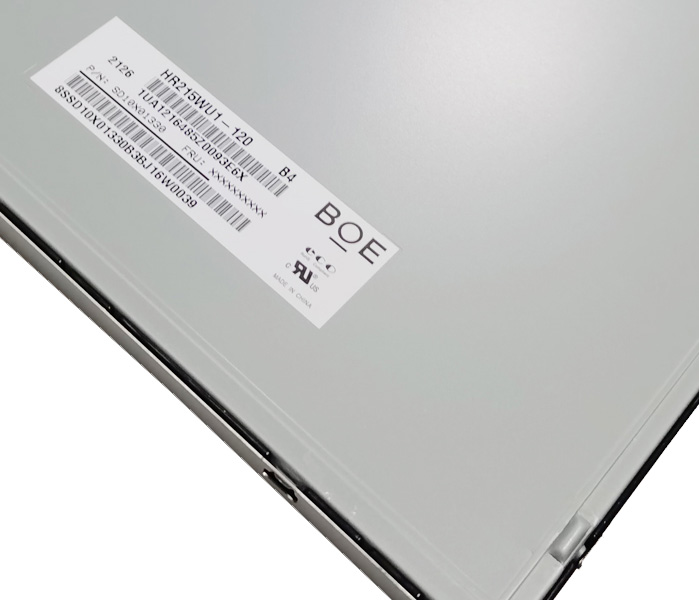

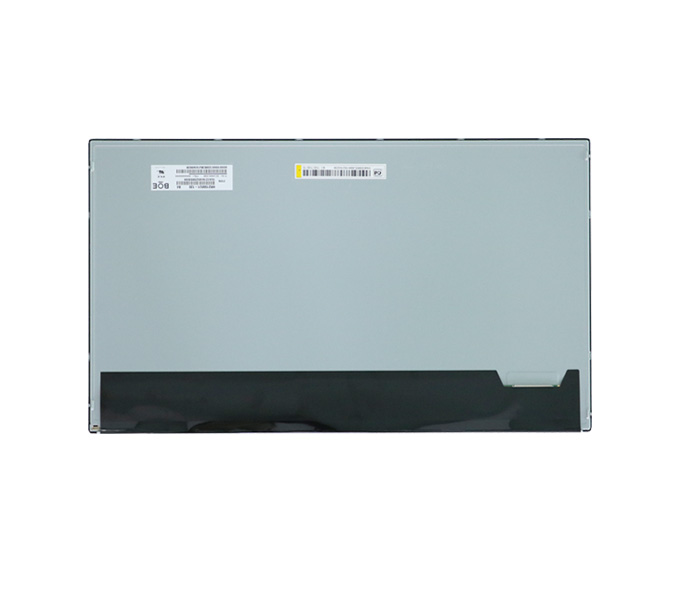

HR215WU1-120
HR215WU1-120 is a 21.5-inch diagonally measured active area with FHD resolution (1920 horizontal by 1080 vertical pixel array). This TFT-LCD module can display 16.7M colors with RED, GREEN, BLUE pixel dots arranged in vertical stripe. Below are the main features:
l LVDS interface with 2 pixel/clock, 30-pin LVDS connector for electrical interface connection and 6-pin connector for back-light interface connection;
l High-speed response: 14ms typically (rising + failing);
l 6-bit (Hi-FRC) color depth, display 16.7M colors;
l Incorporated edge type back-light (one light bar) with 30000 hours LCD life time;
l High luminance (250cd/m2 typically) and contrast ratio (1000:1), low reflection (anti-glare surface treatment, 3H surface hardness) and wide viewing angle (89/89/89/89);
l DE (Data Enable) only;
l Rosh / TCO 6.0, ES6.0 compliant.
Based on the main features, HR215WU1-120 is recommended for desktop type of PC& workstation use, slim-size display for stand-alone monitor, display terminals for control system, monitors for process controller and etc. The following are general specifications at the model HR215WU1-120.
Model No. | HR215WU1-120 | Brand | BOE |
Resolution | 1920x1080pixels | Display Colors | 16.7M |
Luminance | 250cd/m2 | Contrast Ratio | 1000:1 |
Viewing Angle | 89/89/89/89 | Response Time | 14ms |
Interface | LVDS | Display Mode | Normally Black |
Active Area | 476.64x268.11mm | Outline Dimension | 495.6x292.2mm |
Operating Temp. | 0oC ～ 50oC | Storage Temp. | -20oC ～ 60oC |
LB215N05-250
Model No. | LB215N05-250 | OC Model | T215HVN01.1 | Size | 21.5” |
Brightness | 250 cd/m2 | Uniformity | 74% | Resolution | 1920x1080 |
Outline Dimension | 495.6x292.2x10.35mm | Active Area | 476.64x268.11 | Viewing Area | 479.84x271.3 |
Interface | LVDS | Contrast | 1000:1 | Viewing Angels | 89/89/89/89 |
Operating Temperature | 0~50oC | Storage Temperature | -20~60oC | LED Life Time | 3000hours |
