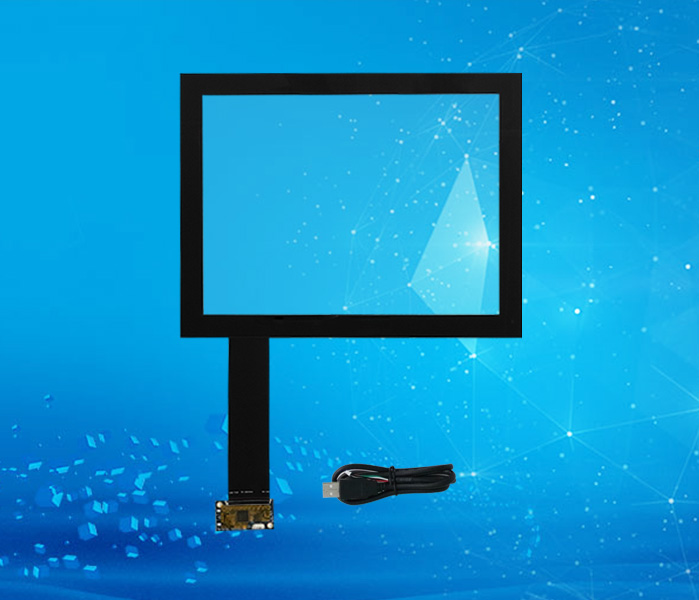

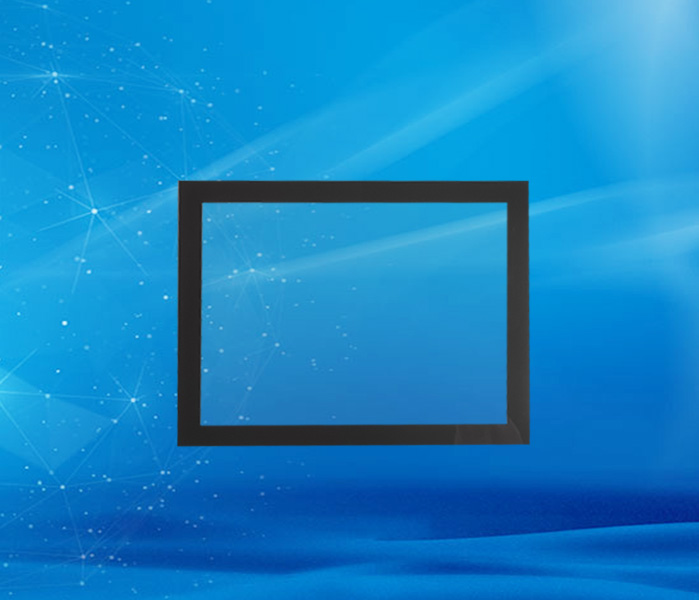

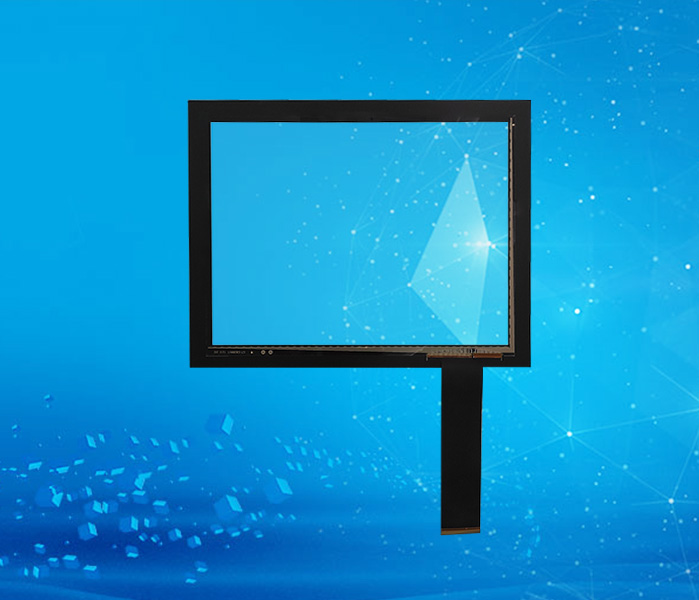

12.1-inch PCAP Touchscreen Overlay

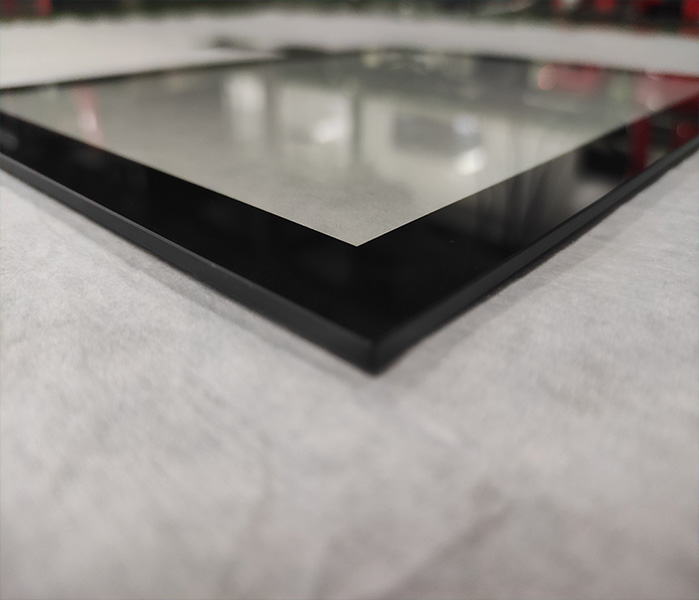

LBCTP121020 is a projected capacitive touchscreen overlay with strengthened cover glass optically bonded on multi-touch sensor glass. It is powered and driven by an ILITEK2511 touchscreen controller with USB interface. It's plug-and-play, compatible with Windows, Android, Linux operating systems. It is widely used for indoor and outdoor touch screen monitors and computers, especially recommneded for outdoor touchscreens with long-time direct sunlight on the surface, as the cover glass has special treatment on the ink. With this special treatment, the ink on the cover glass (black is the color for mass production) is not fading or for turning yellow or falling off, even long-time exposed in the direct sunlight.
| Size | 12.1 inch diagonally |
| Sensor Glass Technology | ITO projected capacitive touch (PCAP) |
| Cover Glass Technology | Inorganic ink with high-temperature sintering (Black) |
| Bonding Technology | Cover glass is optically bonded on sensor glass |
| Stucture | Glass-on-glass, cover glass is bigger than sensor glass for fixing on the enclousure |
| Outline Dimension | 284.8*223.3*1.1mm |
| Sensor Glass dimension | 245.8*184.3*1.1mm |
| Viewing Area | 245.8*184.3mm |
| Aspect Ratio | 4:3 |
| Touch Controller | ILI2511 from ILITEK |
| Interface | USB as standard interface, RS232 and IIC interfaces are for option |
Operating Systems | Windows, Android and Linux |
| Touch Points | multi-touch up to 10 points, supporting finger touch and latex-gloved touch |
| Surface Hardness | 6H (Pencil Hardness) |
| Transmittance | ＞85% |
| Operating Temperature | -20 ~ 70°C |
| Storage Temperature | -30 ~ 80°C |
